Steel Column Base Plate Design and Anchorage Methods

In structural steel construction, the column base plate is the critical interface between the steel frame and the concrete foundation.

Its primary purpose is to distribute the concentrated loads from the steel column over a larger area of the relatively weaker concrete footing, preventing crushing and ensuring stability.

Whether you are designing for a simple warehouse or a complex industrial facility, understanding the nuances of base plate design and anchorage is essential for safety and longevity.

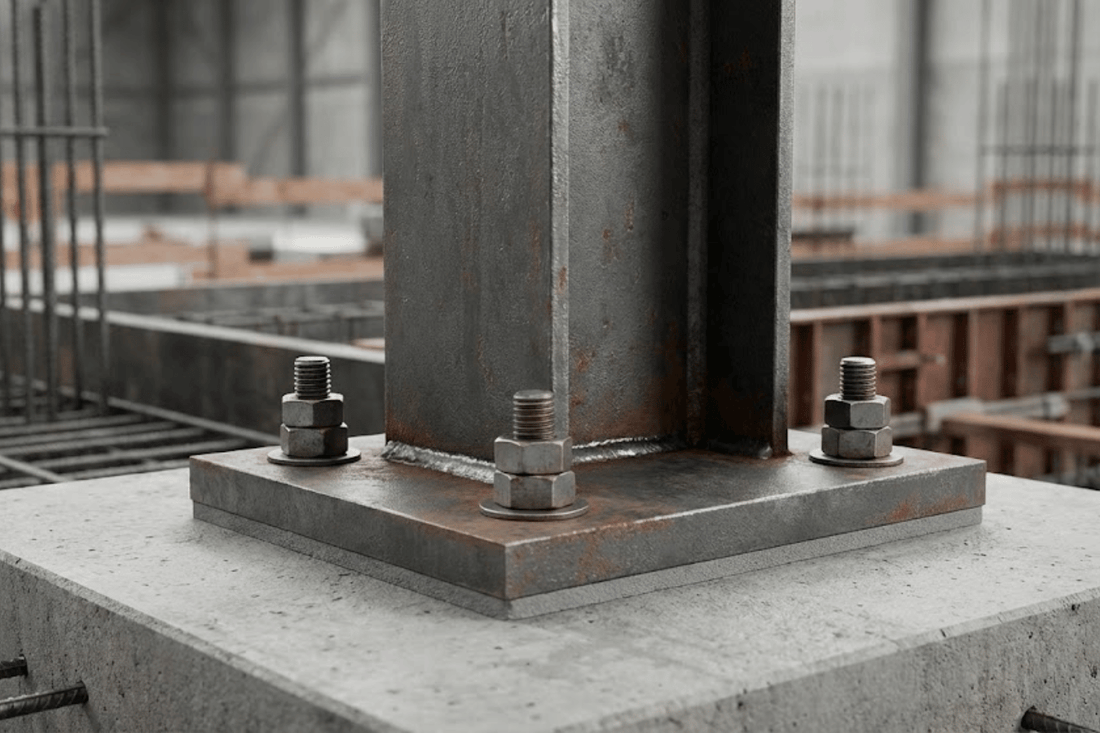

The Role of the Steel Column Base Plate

The base plate acts as a bridge. Steel is incredibly strong but narrow; concrete is durable but can be crushed if too much pressure is applied to a small point.

The base plate spreads the axial loads (vertical weight), shear forces (horizontal movement), and bending moments (rotational force) into the foundation.

Key Components

• The Plate: Usually made of heavy-duty structural steel (A36 or A572 grade).
• Anchor Bolts: Threaded rods embedded in concrete to resist uplift and lateral movement.
• Grout: A high-strength non-shrink material placed between the plate and the concrete to ensure 100% contact and level surfaces.

Design Considerations for Base Plates

Designing a base plate is not a "one size fits all" process. Structural engineers typically follow the AISC (American Institute of Steel Construction) Design Guide 1.

Axial Strength and Bearing Pressure

The plate must be thick enough to prevent bending when the column pushes down. If the plate is too thin, the edges will curl upward, concentrating the load directly under the column profile and risking concrete failure.

Base Plate Thickness Calculation

The thickness is determined by calculating the required plate area ($A_1$) based on the concrete's compressive strength ($f'c$). The formula generally used is

Primary Anchorage Methods

Anchorage methods are categorized by how they are installed and how they transfer force to the concrete.

A. Cast-in-Place Anchor Bolts

These are installed before the concrete is poured. They offer the highest load capacities and are preferred for heavy industrial applications.

• Hex Head Bolts: Use the bolt head to provide pull-out resistance.
• L-Bolts or J-Bolts: Hooked bolts that hook into the concrete, though these are increasingly discouraged for high-tension applications in favor of headed bolts.
• Plate-Washer Anchors: A heavy square washer is welded or nutted to the bottom of the bolt to increase the bearing area within the concrete.

B. Post-Installed Anchors

Used when bolts were forgotten or if the design changes after the foundation is poured.

• Adhesive (Epoxy) Anchors: A hole is drilled, filled with high-strength resin, and a threaded rod is inserted.
• Mechanical Expansion Anchors: These "wedge" into the sides of the drilled hole.

Transferring Shear Forces

While anchor bolts handle uplift (pulling up), they are not always the best at handling shear (sliding sideways). To manage horizontal forces, engineers use:

• Friction: The pressure between the plate and grout.
• Shear Lugs: A steel plate welded to the bottom of the base plate that "keys" into a pocket in the concrete.
• Anchor Bolt Bearing: Allowing the bolts themselves to catch the load (requires precise hole tolerances).

The Importance of Grouting

No concrete foundation is perfectly level. After the steel column is set on leveling nuts or shims, a gap remains between the steel and the concrete.

• Non-shrink grout is packed into this gap.
• It ensures the load is transferred uniformly across the entire surface area of the base plate.
• Without proper grouting, the entire weight of the building would rest solely on the thin anchor bolts, leading to catastrophic failure.

Conclusion

A well-engineered steel column base plate is vital for the safe and efficient transfer of structural loads from the steel frame to the concrete foundation.

By meticulously selecting the correct anchorage methods and calculating precise plate thickness, engineers can ensure long-term stability and prevent concrete failure.

Proper installation techniques, including the use of non-shrink grout, are essential to maintain the integrity of the entire structural system.

Ultimately, adhering to industry standards ensures a secure, durable, and reliable connection for any construction project.

Frequently Asked Questions (FAQs)

1. What is the primary purpose of a steel column base plate?

The primary purpose of a base plate is to distribute the concentrated heavy loads from a steel column over a much larger area of the concrete foundation. Since steel is much stronger than concrete, the plate acts as a buffer to prevent the column from crushing or punching through the concrete footing, ensuring structural stability.

2. Why is the thickness of the base plate so important in design?

The thickness is critical because the plate must be rigid enough to transfer loads uniformly. If a plate is too thin, it may bend or curl under heavy pressure, which concentrates the entire load directly under the column's profile rather than spreading it out. This uneven distribution can lead to foundation failure or structural instability.

3. What is the role of non-shrink grout in anchorage?

Non-shrink grout is used to fill the gap between the concrete foundation and the steel base plate after the column is leveled. Its non-shrink property ensures that as it hardens, it maintains 100% contact between the two surfaces. This creates a solid, uniform path for the load to travel and prevents the weight of the structure from resting solely on the anchor bolts
