Load Calculations for Steel Beams: Dead Loads, Live Loads, and Safety Factors

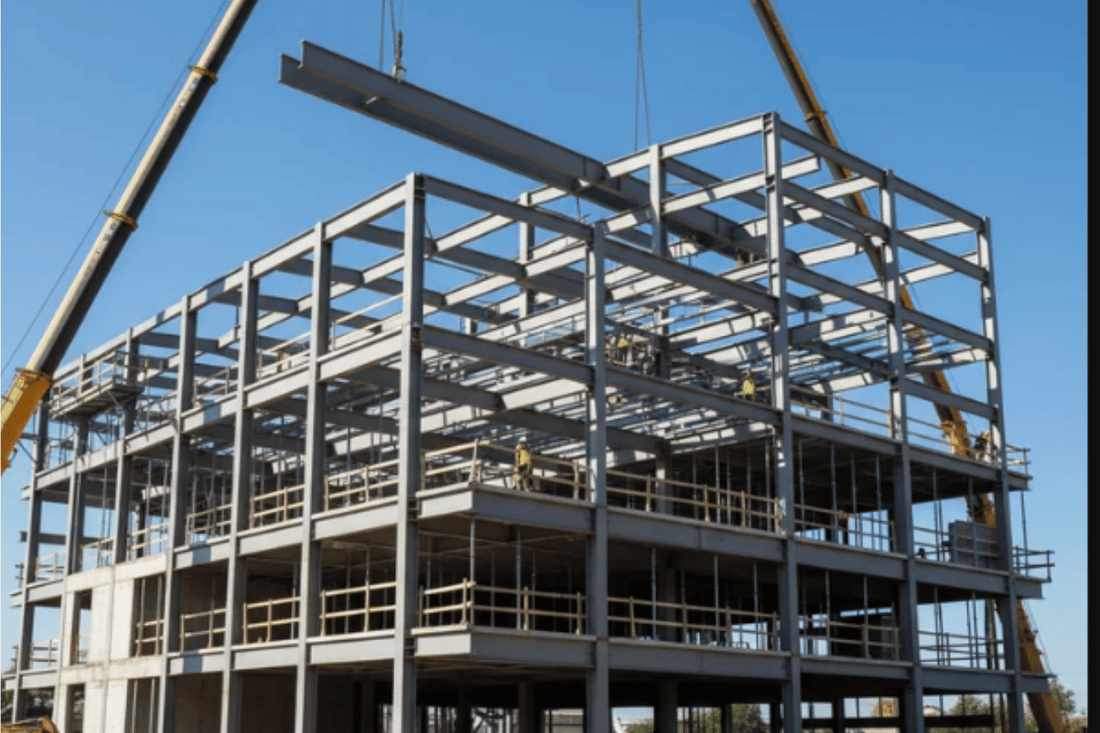

Steel beams are the backbone of modern construction, supporting floors, roofs, and entire structures.
Accurate load calculations encompassing dead loads, live loads, and safety factors are essential for ensuring safety, code compliance, and cost-effective design.
This article provides technically rigorous overview of how to perform these calculations, referencing the latest standards and best practices.
Fundamental Principles of Steel Beam Load Calculations
Steel beam load calculations involve determining all forces acting on a beam and ensuring the beam can safely resist them.
The process includes:
- Identifying all relevant loads: Dead, live, and environmental (wind, snow, seismic).
- Calculating load magnitude and distribution: Using tributary areas and code-specified values.
- Analyzing internal forces: Bending moments, shear forces, and deflections.
- Applying safety factors: To account for uncertainties in loads and material properties.
- Verifying code compliance: Using current standards such as AISC 360 and ASCE 7.
Dead Loads: Definition, Calculation, and Examples
1) What Are Dead Loads?
Dead loads are permanent, static forces from the structure itself and all permanently attached components.
They include:
- Self-weight of steel beams, columns, and slabs
- Floor and roof systems
- Walls, ceilings, and fixed equipment.
2) How to Calculate Dead Loads
Density-Based Method
Dead Load = Density × Volume
Example: Concrete slab (50 m² area, 0.2 m thick, 2400 kg/m³)Dead Load = 50 × 0.2 × 2400 = 24,000 kg ).
Weight-Based Method
Use manufacturer tables for steel sections (e.g., W8x35 = 35 lb/ft
Area Load Method
For distributed elements, use code tables (e.g., 150 psf for 12" concrete slab)
3) Typical Dead Load Values
| Material / Component | Typical Dead Load Value |
|---|---|
| Reinforced Concrete (12") | 150 psf |
| Structural Steel (W8x35) | 35 lb/ft (per beam length) |
| Brick Masonry Wall | 40–60 psf |
| Floor Finishes (Tile) | 5–10 psf |
| Roofing (Asphalt Shingle) | 2.5–4 psf |
Note: Always use current code values and manufacturer data for dead load calculations to ensure accuracy and compliance.
Live Loads: Types, Occupancy, and Calculation
1) What Are Live Loads?
Live loads are variable, non-permanent forces from occupants, furniture, movable equipment, and environmental factors like snow and wind.
2) Standard Live Load Values by Occupancy
| Occupancy / Use | Uniform Live Load (psf) | Concentrated Load (lbs) | Reduction Allowed? |
|---|---|---|---|
| Residential | 40 | 300 | Yes |
| Office | 50 | 2,000 | Yes |
| Assembly (movable) | 100 | — | No |
| Retail (first floor) | 100 | 1,000 | Yes |
| Storage (light) | 125 | — | No |
3) Live Load Reduction
For large tributary areas, live loads may be reduced using code formulas. For example, for an office beam supporting 800 ft²:
- Unreduced live load (Lo): 50 psf
- Reduction factor:
R = 0.25 + 15 / √(2 × 800) = 0.625 - Reduced live load:
L = 0.625 × 50 = 31.25 psf(not less than 0.5Lo = 25 psf).
Safety Factors and Load Combinations
1) Why Use Safety Factors?
Safety factors account for uncertainties in load estimation, material properties, and construction tolerances, providing a margin of safety.
2) Design Philosophies
| Feature | ASD (Allowable Stress Design) | LRFD (Load & Resistance Factor Design) |
|---|---|---|
| Safety Factor | Ω = 1.67 (flexure/shear) | ϕ = 0.9 (flexure/shear) |
| Load Factors | Service loads (1.0) | Factored loads (>1.0) |
| Application | Traditional | Modern, reliability-based |
| Code Reference | AISC 360, ASCE 7 | AISC 360, ASCE 7 |
3) Standard Load Combinations
ASD Example:
- D + L
- D + 0.75L + 0.75S (snow).
LRFD Example:
- 1.2D + 1.6L
- 1.2D + 1.6L + 0.5S (snow).
Note: Always use the load combinations and safety factors specified in the latest codes for your design methood.
Current Building Codes and Standards
Essential Codes for Steel Beam Load Calculations
| Code/Standard | Latest Edition | Key Provisions |
|---|---|---|
| ASCE 7 | 2022 (7-22) | Load types, combinations, regional hazard data |
| AISC 360 | 2022 (360-22) | Steel design, safety factors, section properties |
| IBC | 2024 | References ASCE 7 & AISC 360, regional amendments |
- ASCE 7-22: Governs load determination, including dead, live, wind, snow, and seismic loads
- AISC 360-22: Governs steel design, including safety factors and section requirements.
- IBC 2024: Model code adopted by most U.S. jurisdictions, referencing ASCE 7 and AISC 360.
Conclusion
Accurate load calculations for steel beams are essential to ensure structural safety, optimal material use, and regulatory compliance.
By understanding dead loads, live loads, and appropriate safety factors, engineers can design efficient and secure steel structures.
Utilizing these calculations minimizes risks and prevents costly structural failures. Always consult with professionals and adhere to building codes for the best results.
Frequently Asked Questions (FAQs)
1. What is the difference between dead load and live load?
Dead load refers to the permanent, static weight of the structure itself, such as beams, floors, and fixed equipment. Live load involves temporary or movable weights like people, furniture, and vehicles that the structure supports during its use.
2. Why are safety factors important in load calculations?
Safety factors provide a margin of error to account for uncertainties in material properties, construction methods, and unexpected loads. They help ensure that steel beams can safely support more than the calculated maximum load, enhancing the building’s overall safety.
3. How often should load calculations be reviewed or updated?
Load calculations should be reviewed or updated whenever there are significant changes in building use, occupancy, or after renovations and additions. Regular reviews help maintain structural integrity and adapt to evolving safety standards.
