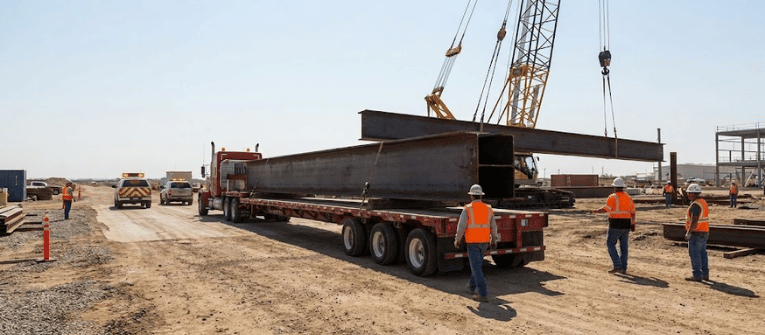

Construction crew in high-visibility vests guiding a crane as large steel beams are loaded onto a flatbed truck at a dusty site

How to Manage the Logistics of Shipping Oversized Steel Piles

Shipping oversized steel piles is one of the most complex tasks in construction logistics.

Unlike standard palletized freight, steel piles often exceeding 80 feet in length and weighing several tons require a synchronized effort involving specialized equipment, rigorous route planning, and strict adherence to safety regulations.

This guide provides a comprehensive roadmap for managing the transportation of these structural giants, ensuring your project stays on schedule and within budget while maintaining the integrity of the cargo.

Phase 1: Planning and Route Surveys

The success of a heavy haul is determined before the truck ever leaves the yard. Shipping steel piles requires a shift from standard freight thinking to project cargo thinking.

Conduct a Route Survey

For piles exceeding 53 feet (standard trailer length) or those with wide diameters, you cannot rely on GPS.

Truck carrying large pipes paused at a low-clearance 13'-6" bridge while a worker in a hard hat directs an alternate turn
  • Turning Radii: Can an 80-foot long truck navigate the right turns at your job site?
  • Bridge Clearances: Are there low overpasses?
  • Weight Restrictions: Are there bridges or roads with weight limits lower than your gross vehicle weight (GVW)?

Site Accessibility

Never assume the delivery site is ready. Construction sites often have loose soil that cannot support heavy haul trucks.

Construction site with workers in orange safety vests guiding a crane unloading steel beams from a flatbed truck on muddy ground
  • Check: Is the offloading area graded and compacted?
  • Check: Is there a crane on-site capable of lifting the piles from the center or two points to prevent buckling?

Phase 2: Selecting the Right Equipment

Standard flatbeds are rarely sufficient for steel piling. You will likely need specialized assets.

Stretch (Extendable) Trailers

These trailers have a telescoping mechanism that allows the deck to lengthen. They are the industry standard for piles ranging from 53 to 80 feet.

Lowboy trailer with extendable steel beams and chained I‑beams being loaded at a construction site with a crane
  1. Pros: Legal compliance for length without overhang.
  2. Cons: Heavier empty weight reduces payload capacity.

Steerable Dollies / Jeeps

For extreme lengths (100+ feet), the rear of the pile rests on a separate set of axles (dolly) that can be steered remotely by a pilot car or the driver. This allows the load to snake through turns.

Construction site with workers guiding an oversized pipe on a flatbed truck through muddy site lanes beside industrial buildings and cranes

Multi-Modal Options (Rail & Barge)

If moving piles coast-to-coast, trucking is often cost-prohibitive.

  1. Rail: Excellent for high volume, but requires transloading (moving from train to truck) for the final mile.
  2. Barge: Ideal for marine construction projects. Piles can be delivered directly to the water's edge.

Phase 3: Permitting and Regulations

Because steel piles often classify as Oversized/Over-Dimensional (OD) loads, they trigger a web of state and municipal regulations.

Construction worker in safety vest and hard hat holding paperwork in front of a flatbed truck carrying a large oversized pipe

The Permit Maze

Every state has different thresholds for what constitutes oversized.

  • Width: Over 8.5 feet (common for large diameter pipe piles).
  • Length: Over 53 feet (trailer) or roughly 65-75 feet (overall combination).
  • Weight: Over 80,000 lbs Gross Vehicle Weight.

Action Item: You must secure permits for every state the load travels through. This often requires submitting your exact route for approval 3-10 days in advance.

Escort Vehicles (Pilot Cars)

If your piles are excessively long or wide, states will require escort vehicles.

Escort vehicles accompany a semi-truck hauling a large rusted cylindrical pipe on a multi-lane highway under partly cloudy sky
  • Front Escort: Warns oncoming traffic (usually a pole car to check height).
  • Rear Escort: Prevents other drivers from tailgating or passing dangerously.
  • Police Escort: Required for Superloads that block multiple lanes.

Phase 4: Loading and Securing Procedures

Safety is paramount. Steel piles are round (rolling risk) and heavy (crushing risk).

Construction workers guide a crane lowering large steel I‑beams onto a flatbed trailer at an industrial site, bright day, safety vests and helmets

The Department of Transportation (DOT) has strict rules for securing metal loads.

Prevents Rolling: Chocks and Dunnage

  • Dunnage: Hardwood timber must be placed between the trailer deck and the steel, and between layers of steel.
  • Chocks/Wedges: Every bottom-layer pipe must be chocked to prevent rolling.
  • Pyramid Stacking: Piles are best stacked in a pyramid formation (nested) to use gravity for stability.

Protecting the Coating

If the piles are coated (galvanized or epoxy), standard steel chains will destroy the protection.

  • Use: Nylon straps or chains with edge protectors.
  • Avoid: Direct metal-on-metal contact.
Workers in hi-vis vests secure large blue industrial pipes with yellow ratchet straps on a wooden pallet at a construction site

Overhang Limits

Legally, you are allowed a certain amount of overhang (sticking out the back of the trailer), usually 4-5 feet.

Truck hauling oversized cylindrical pipes at night on a highway, hazard flags and cones, amber lights reflecting on wet road surface

Anything beyond this requires red flags during the day and strobe lights at night attached to the end of the load.

Phase 5: Cost Management Strategies

Shipping air is expensive.

  • Nesting: If shipping pipes of different diameters, nest the smaller pipes inside the larger ones (if weight limits allow). This effectively ships two loads for the price of one.
  • Backhauls: Look for carriers who are stuck in your pickup area and need to return home. They may offer lower rates.
  • Crane Coordination: Detention fees (paying the trucker to wait) can kill your budget. Ensure the crane is ready the minute the truck arrives.
Construction site supervisor in hard hat and vest reviewing project charts on tablet while workers load large steel pipes onto truck

Conclusion

Managing the logistics of shipping oversized steel piles is a high-stakes balancing act between regulatory compliance, safety, and project timelines.

It requires moving beyond standard freight practices and embracing specialized heavy-haul methodologies.

By conducting thorough route surveys, selecting the correct trailer configurations, and adhering to strict load securement protocols, you ensure that the foundation of your construction project arrives intact and on time.

Frequently Asked Questions (FAQs)

1. What qualifies a steel pile shipment as an oversized load?

Generally, a load is considered oversized if it exceeds standard legal limits: 8.5 feet in width, 13.5 feet in height, 53 feet in length, or a gross vehicle weight of 80,000 lbs. Crossing any of these thresholds typically requires state-specific permits and potential route surveys.

2. What is the best trailer type for shipping 80-foot steel piles?

For piles of this length, a Stretch (Extendable) Flatbed Trailer is the industry standard. These trailers can telescope open to legally support the length of the pile, ensuring the overhang remains within safe and legal limits while distributing the weight correctly.

3. How can nesting reduce the cost of shipping steel pipes?

Nesting involves placing smaller diameter pipes inside larger diameter pipes (like Russian nesting dolls). This strategy maximizes the trailer's available space and payload capacity, allowing you to ship more product in fewer trips, significantly lowering your cost per ton.
