Pipe Coating Systems: Epoxy, Polyethylene, and Specialized Applications

Pipe coating systems are very important for maintaining the lifespan, safety, and efficiency of pipelines, especially in industries like oil & gas, water treatment, chemical processing, and infrastructure.

These coatings act as a protective barrier that shields pipes from corrosion, chemical attack, mechanical damage, and environmental degradation.

Choosing the right pipe coating system is essential for reducing maintenance costs, preventing leaks, and ensuring compliance with industry standards and environmental regulations.

In this comprehensive guide, we cover the fundamentals, technical specifications, applications, benefits, installation methods, maintenance requirements, and emerging innovations for three major categories of pipe coatings.

What Are Pipe Coating Systems?

Pipe coating systems are engineered layers applied to the internal or external surfaces of pipes to protect them from various threats.

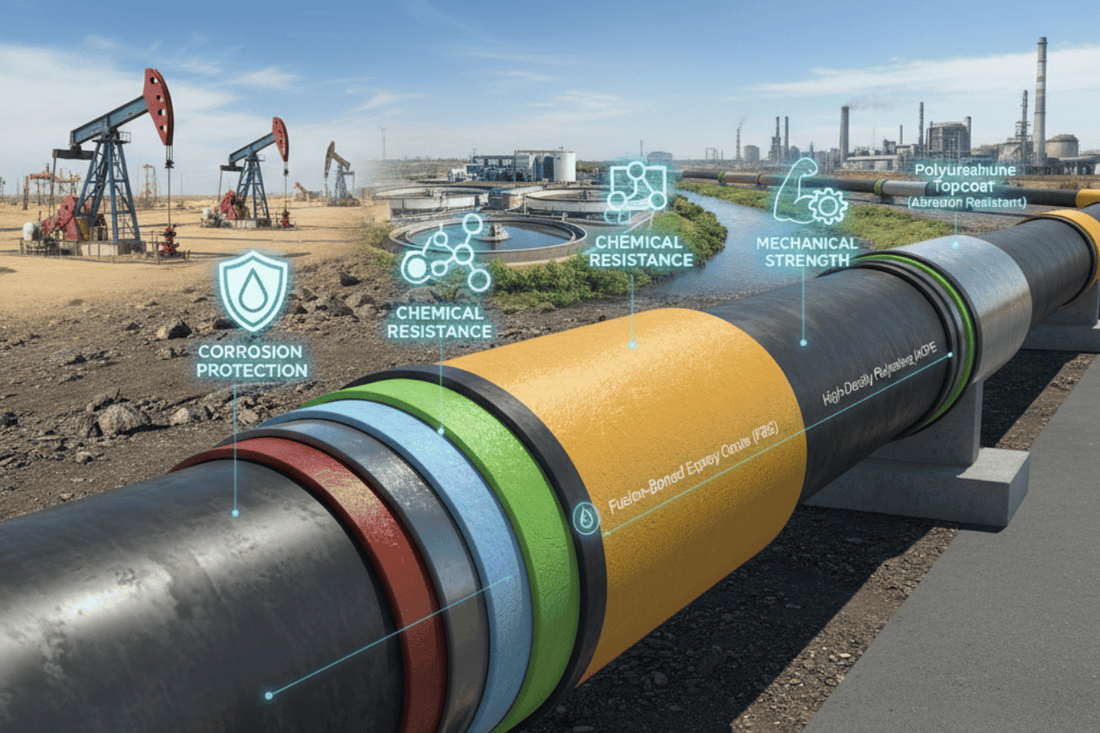

The main objectives include:

1. Corrosion Protection: Preventing rust and degradation from moisture and chemicals.
2. Chemical Resistance: Shielding against acids, alkalis, and solvents.
3. Mechanical Strength: Guarding against impacts, abrasion, and scratches.
4. Environmental Resistance: Withstanding UV exposure, temperature fluctuations, and soil conditions.

1) Epoxy Pipe Coating Systems

What is Epoxy Pipe Coating?

Epoxy coatings are thermoset polymers known for their excellent adhesion, chemical resistance, and durability. They are widely used for both internal and external protection of steel, ductile iron, and concrete pipes.

Types of Epoxy Coatings

• Fusion-Bonded Epoxy (FBE): Applied as a dry powder using electrostatic spray, then cured at high temperatures to form a solid, impermeable layer.
• Liquid Epoxy: Applied as a liquid, forming a smooth, seamless finish suitable for both internal and external surfaces.

Key Features and Benefits

• Superior Corrosion Resistance: Epoxy forms a strong, continuous barrier that prevents water and chemicals from reaching the pipe surface.
• Excellent Adhesion: Bonds tightly to properly prepared metal surfaces, reducing the risk of disbondment.
• Chemical and Temperature Resistance: Withstands a wide range of chemicals and temperature fluctuations.
• Long Service Life: When properly applied and maintained, epoxy coatings can last 30–50 years
• Compliance: Meets strict industry standards such as ISO 21809, API RP 5L2, and NACE.

Typical Applications

• Oil & Gas Pipelines: External and internal protection for transmission and gathering lines.
• Water and Wastewater: Internal linings for potable water and sewer pipes.
• Industrial Processing: Pipes exposed to aggressive chemicals or high temperatures.

Technical Specifications

• Surface Preparation: Minimum SSPC-SP 10 Near-White Blast Cleaning.
• Coating Thickness: Typically 14–20 mils for single-layer FBE.
• Inspection: High-voltage holiday detection and dry film thickness (DFT) measurements.

2) Polyethylene Pipe Coating Systems

What is Polyethylene Pipe Coating?

Polyethylene (PE) coatings are part of the polyolefin family and are typically applied as multi-layer systems. The most common is the Three-Layer Polyethylene (3LPE) system, which combines the benefits of epoxy and polyethylene.

Structure of 3LPE Coating

1. Fusion-Bonded Epoxy Primer: Provides corrosion resistance and adhesion.
2. Copolymer Adhesive: Bonds the epoxy primer to the topcoat.
3. Polyethylene Top Layer: Offers mechanical protection and moisture resistance.

Key Features and Benefits

• Outstanding Mechanical Protection: High impact and abrasion resistance, ideal for buried and harsh environments.
• Moisture and Chemical Barrier: Excellent resistance to soil chemicals and water ingress.
• Flexibility: Accommodates soil movement and thermal expansion.
• Long-Term Durability: Service life of 30–50 years with proper installation and maintenance.
• Cost-Effectiveness: Reduces the need for frequent repairs and replacements.

Typical Applications

• Buried Oil & Gas Pipelines: External protection in aggressive soils and marine environments.
• Water Transmission: Underground water supply lines.
• Industrial and Marine: Pipelines exposed to mechanical stress or corrosive environments.

Technical Specifications

• Standard: CSA Z245.21 for plant-applied external polyethylene coating.
• Application Method: Multi-layer extrusion or wrapping, with rigorous quality contro.

3) Specialized Pipe Coating Applications

Specialized coatings are designed for unique operational challenges, such as high temperatures, chemical exposure, or mechanical stress. These include polyurethane, coal tar enamel, bitumen, cement mortar, and advanced geotextile-backed wraps.

Common Specialized Coatings

• Polyurethane (PU): Tough, flexible, and abrasion-resistant; ideal for pipelines subject to movement or vibration.
• Coal Tar Enamel (CTE): Traditional, cost-effective, and waterproof, but less common due to environmental concerns.
• Bitumen/Asphalt: Low-cost, waterproof, and resistant to soil acids; used for underground pipelines.
• Cement Mortar: Internal lining for water and wastewater pipes, preventing corrosion and scaling.
• Geotextile-Backed Wraps: Accommodate soil stress and thermal expansion, used in challenging soil conditions.
• Phenolic and Polysiloxane: High temperature and UV resistance for marine and offshore applications.

Key Features and Benefits

• Tailored Protection: Each specialized coating addresses specific threats, such as chemical attack, abrasion, or high temperatures.
• Extended Service Life: Properly selected and applied, these coatings can significantly extend the operational life of pipelines.
• Regulatory Compliance: Many specialized coatings are designed to meet industry and environmental standards.

Typical Applications

• Chemical Processing: Polyurethane and phenolic coatings for aggressive chemicals.
• Marine and Offshore: Polysiloxane and geotextile-backed wraps for saltwater and mechanical durability.
• Water Infrastructure: Cement mortar for potable water and wastewater systems.

Installation Methods, Maintenance, and Longevity

Installation Methods

• Surface Preparation: Abrasive blasting to remove contaminants and create a suitable profile.
• Coating Application: Varies by type electrostatic spray for FBE, extrusion/wrapping for PE, brushing/spraying for CTE and bitumen.
• Curing: Controlled conditions to ensure full adhesion and mechanical strength.
• Inspection: Holiday detection, DFT measurements, and documentation at each stage.

Maintenance Requirements

• Regular Inspections: Visual and non-destructive testing to detect damage or disbondment.
• Holiday Testing: Identifies breaches in the coating.
• Touch-Up and Repairs: Prompt recoating of damaged areas to prevent corrosion.
• Cathodic Protection: Often used in conjunction with coatings for buried pipelines.

Longevity

• FBE and 3LPE/3LPP: 30–50 years with proper installation and maintenance.
• Coal Tar Enamel: 20–30 years, depending on environment and upkeep.
• Polyurethane and Cement Mortar: 25–40 years, depending on application.

Emerging Technologies and Innovations

• Nanotechnology-Based Coatings: Enhanced barrier properties and self-healing capabilities for extreme environments.
• Smart Coatings: Embedded sensors for real-time monitoring and predictive maintenance.
• Waterborne and Bio-Based Coatings: Lower VOC emissions and improved sustainability.
• Automated and Robotic Application: Consistent thickness, reduced human error, and improved safety.
• AI-Driven Formulation: Accelerated development of coatings tailored to specific operational needs.

Common Challenges and Solutions in Pipe Coating Applications

1. Surface Preparation Issues: Inadequate cleaning leads to poor adhesion and early failure. Solution: Adhere to industry standards and minimize time between blasting and coating.
2. Application Errors: Uneven application causes pinholes or thin spots. Solution: Calibrate equipment and train applicators.
3. Curing Problems: Under- or over-cured coatings underperform. Solution: Monitor curing conditions and validate with post-cure testing.
4. Inspection Gaps: Missed holidays or incomplete documentation can allow corrosion. Solution: Use systematic inspection protocols and document all findings
5. Environmental and Mechanical Damage: Sharp edges, soil movement, or installation mishandling can breach coatings. Solution: Design for coatability, use protective measures, and enforce handling procedures.

Conclusion

Pipe coating systems including epoxy, polyethylene, and specialized applications are vital for the protection, efficiency, and sustainability of pipelines in diverse industries.

By understanding the properties, benefits, installation methods, and maintenance requirements of each system, users can make informed decisions that maximize pipeline longevity, minimize environmental impact, and ensure regulatory compliance.

As technology advances, innovations in materials, application methods, and smart monitoring are setting new standards for pipeline protection and performance.

Frequently Asked Questions (FAQs)

1. What is the main purpose of pipe coating systems?

The main purpose of pipe coating systems is to protect pipes from corrosion, chemical damage, and physical wear. Coatings extend the lifespan of pipes by creating a barrier between the metal and harsh environments. This helps maintain the integrity and safety of pipelines over time.

2. How are epoxy and polyethylene coatings different?

Epoxy coatings are typically applied as a liquid and cure to form a hard, chemical-resistant layer that bonds tightly to the pipe surface. Polyethylene coatings, on the other hand, are usually applied as a plastic sheath, offering excellent impact resistance and flexibility. Each type is chosen based on the specific protection needs of the pipeline.

3. What is the basic process for applying pipe coatings?

The basic process for applying pipe coatings involves cleaning the pipe surface, applying a primer or adhesive, and then adding the coating material (such as epoxy or polyethylene). The coated pipe is then cured or cooled to ensure the coating adheres properly. Quality checks are performed to confirm the coating’s effectiveness.
