Latest Innovations in Composite Steel-Clad Timber Beams
Share
Composite steel-clad timber beams are revolutionizing the construction industry by merging the best properties of steel and timber.
These hybrid beams deliver exceptional structural performance, sustainability, and design flexibility, making them a top choice for modern, eco-conscious building projects.
This article explores the latest innovations, technical advancements, and real-world applications of composite steel-clad timber beams, providing a comprehensive resource for engineers, architects, builders, and sustainability advocates.
What Are Composite Steel-Clad Timber Beams?

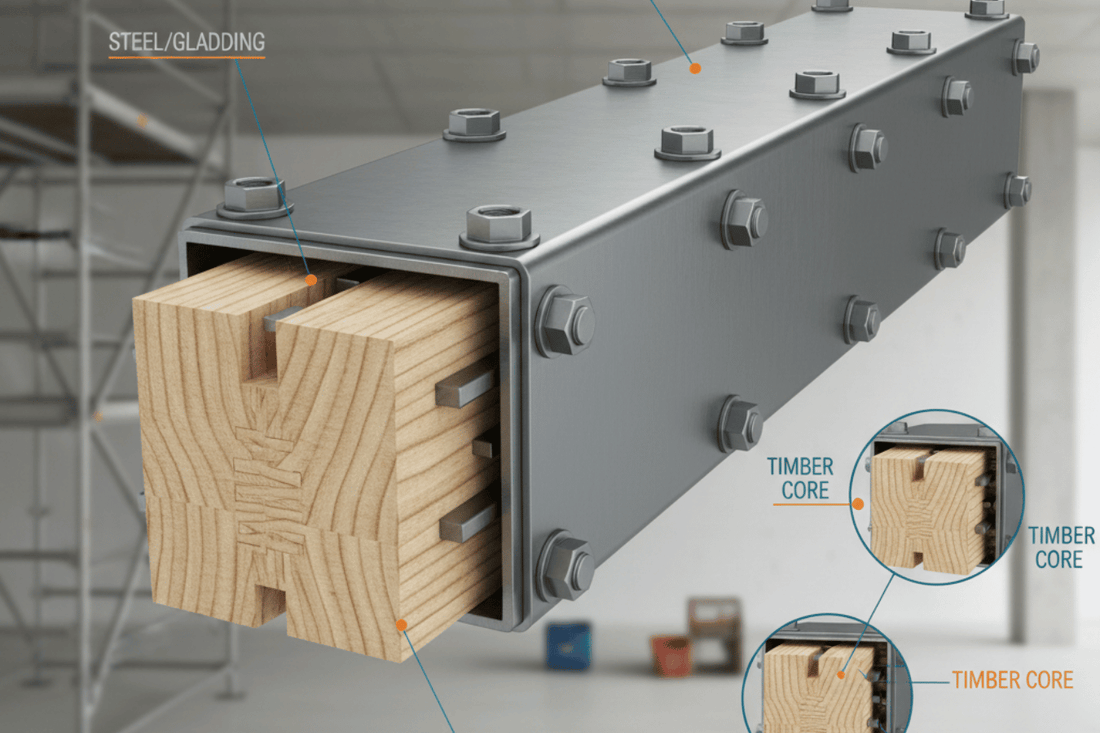

Composite steel-clad timber beams are structural elements featuring an engineered timber core (such as glulam or CLT) encased or reinforced with steel cladding.
This synergy leverages timber’s renewability and steel’s strength, resulting in beams with enhanced load-bearing capacity, ductility, fire resistance, and durability compared to traditional timber or steel beams alone.
The steel cladding is typically applied using cold-formed sections, U-shaped profiles, or external plates, with connections made via bolts, screws, adhesives, or hybrid systems.
Key Features
- High strength-to-weight ratio
- Superior fire and seismic performance
- Sustainable and low-carbon construction
- Prefabrication and modularity for rapid assembly.
Latest Innovations (2022–2025)
Advanced Manufacturing Techniques
- Additive Timber Manufacturing (ATM): Robotic fabrication and wood-based filaments enable complex geometries and optimized weight, supporting efficient integration with steel cladding.
- Automated Lamination: High-precision lamination and advanced adhesives improve fire resistance, acoustic performance, and structural integrity.
- Prefabricated Modular Components: Factory-produced CLT panels with customized cold-formed steel beams allow for rapid, dry assembly and easy deconstruction, supporting circular economy principles.
Improved Connection Methods
- Advanced Fasteners: Inclined screws, high-strength bolts, and steel nail plates increase load capacity and ductility.
- Bolted Grout Pocket (BGP) Connections: These connections offer up to 2.4× higher peak load and 10× higher slip modulus than traditional screws.
- Hybrid Adhesive-Fastener Systems: Combining adhesives with mechanical fasteners doubles strength and increases stiffness by up to 100%
- Demountable and Reusable Connections: New systems enable up to 90% material reuse at end-of-life, supporting sustainable, circular construction.
Advanced Steel Cladding Technologies
- Cold-Formed Steel (CFS) Integration: CFS-timber composites achieve 120–180% increases in load-bearing capacity and up to 50% higher moment capacity
- Steel Encased Timber (SET) and Timber Encased Steel (TES): These multilayer systems offer tailored performance, with SET sections showing up to 180% higher flexural capacity than timber-only beams
- Bio-Hybrid Coatings: Self-healing timber coatings and bio-epoxy adhesives enhance durability, fire resistance, and environmental performance
Hybrid Design Approaches
- Generative and AI-Optimized Design: Software tools optimize connector layouts, reducing design cycles by 20% and improving efficiency. AI models optimize timber grain orientation, increasing vibration damping by 25% and predicting long-term creep
- Composite Laminated Timber Beams: Laminated beams with CFS cladding can carry double the load of traditional beams, with up to 144.69% increase in shear capacity and 67.61% increase in ductility
Novel Applications
- Modular and Demountable Buildings: Prefabricated modular floors and demountable STC flooring systems enable rapid assembly, adaptability, and material reuse.
- Seismic and Fire-Resistant Structures: Hybrid systems with ductile connections and improved fire engineering are now adopted in seismic regions and for high-rise applications.
-
Circular Economy and Carbon Reduction: Blockchain supply tracking and policy frameworks ensure sustainable sourcing and reduce greenwashing risks.
Technical Performance and Engineering Benefits
| Property | Steel-Clad Timber Composite | Timber-Only | Steel-Only | Concrete-Only |
|---|---|---|---|---|
| Load-Bearing Capacity | High | Moderate | High | High |
| Fire Resistance | Excellent | Good (charring) | Poor (unprotected) | Excellent |
| Durability | Good (with treatment) | Moderate | Good (corrosion risk) | Excellent |
| Seismic Performance | Excellent | Good (lightweight) | Good (ductile) | Moderate (heavy) |
| Weight | Low | Lowest | High | Highest |
| Sustainability | High | High | Low | Low |
Note: Composite steel-clad timber beams deliver 120–180% higher load-bearing capacity than timber-only beams, with superior fire resistance (up to 81 minutes with 45 mm timber protection) and excellent seismic performance due to their lightweight and ductile design.
Environmental and Sustainability Benefits
| Material/System | GWP Reduction vs. RC | GWP Reduction vs. Steel | Carbon Sequestration | Recyclability | Embodied Energy | Reference Density (kg/m³) |
|---|---|---|---|---|---|---|
| Mass Timber (CLT, Glulam) | 39–51% | 31–41% | Yes | High | Low | 500–560 |
| Composite Steel-Clad Timber Beam | Lower than RC/Steel | Lower than Steel | Yes | Very High | Low–Medium | ~500–560 (timber core) |
| Steel | — | — | No | Very High | High | 7850 |
| Reinforced Concrete | — | — | No | Medium | High | 2400 |
- Carbon Footprint: Composite beams can reduce global warming potential by 39–51% compared to concrete and 31–41% compared to steel, with even greater reductions when accounting for carbon sequestration.
- Renewable and Recyclable: Timber is renewable and stores carbon, while steel is highly recyclable. Composite systems designed for deconstruction maximize end-of-life sustainability.
- Energy Efficiency: Timber manufacturing requires less energy than steel or concrete, further lowering environmental impact.
Market Trends and Future Prospects
- Market Growth: The global engineered wood market is projected to grow from $254.2 billion in 2023 to $427.3 billion by 2033 (CAGR 5.3%). The mass timber market is expected to reach $9.5 billion by 2033 (CAGR 12.6%).
- Adoption Drivers: Sustainability, speed of construction, regulatory support, and cost efficiencies are accelerating adoption, especially in Europe, North America, and Asia-Pacific.
- Barriers: Regulatory limitations, fire safety perceptions, skilled labor shortages, and market awareness remain challenges, but ongoing innovation and policy support are addressing these issues.
- Future Outlook: As building codes evolve and industry familiarity increases, adoption rates are projected to accelerate, particularly in regions prioritizing low-carbon construction and rapid urban development.
Conclusion
Composite steel-clad timber beams represent a transformative innovation in sustainable construction, offering unmatched structural performance, fire and seismic safety, and environmental benefits.
The latest advancements in manufacturing, connection technology, and design optimization are making these hybrid beams more accessible, efficient, and adaptable than ever before.
As the construction industry continues to prioritize sustainability and high-performance solutions, composite steel-clad timber beams are poised to play a pivotal role in shaping the future of architecture and infrastructure.
Frequently Asked Questions (FAQs)
1. What are the main advantages of using composite steel-clad timber beams in construction?
Composite steel-clad timber beams offer several key advantages:
- Superior strength-to-weight ratio compared to traditional timber or steel beams.
- Enhanced fire and seismic resistance due to steel cladding and engineered connections.
- Sustainable construction, as timber is a renewable resource and the design supports easy recycling and reuse.
2. How do composite steel-clad timber beams improve sustainability in building projects?
These beams combine the carbon-sequestering benefits of timber with the recyclability of steel, significantly reducing the overall carbon footprint of a building. Their prefabrication and modular design also minimize waste and enable deconstruction for material reuse, supporting circular economy principles.
3. Are composite steel-clad timber beams suitable for high-rise or large-span structures?
Yes, recent innovations have made these beams highly suitable for high-rise buildings and large-span structures. Their hybrid design allows for longer spans, superior load-bearing capacity, and excellent performance under seismic and fire conditions, making them ideal for demanding architectural and engineering applications.
