Advances in Laser Cladding for Pipe Repair
Share
In high-stress industrial environments, the integrity of piping systems is non-negotiable.
Traditional repair methods, such as manual weld overlays (MIG/TIG), often suffer from high heat-affected zones (HAZ) and significant material dilution, leading to premature failure.
Laser Cladding has emerged as the definitive solution. By utilizing a focused laser beam to melt a filler material (powder or wire) onto the pipe’s surface, it creates a metallurgical bond with unmatched precision.
As of 2025, recent technological shifts have made this process faster and more accessible than ever before.
Key Advances in Laser Cladding Technology (2025 Update)
The landscape of pipe restoration has been transformed by three major pillars of innovation:
1) High-Power Fiber and Diode Lasers
The transition to high-power fiber lasers has increased deposition rates significantly. Where older CO2 lasers were limited by energy efficiency, modern fiber systems provide:
- Faster Processing Speeds: Reducing repair timelines by up to 40%.
- Minimal Heat Input: Concentrated energy ensures the base pipe material maintains its structural integrity without warping.
2) AI-Driven Robotic Automation
The integration of Industry 4.0 technologies allows for "smart cladding." Modern systems now feature:
- In-Situ Monitoring: Real-time sensors adjust laser power and powder flow instantly to correct for surface irregularities.

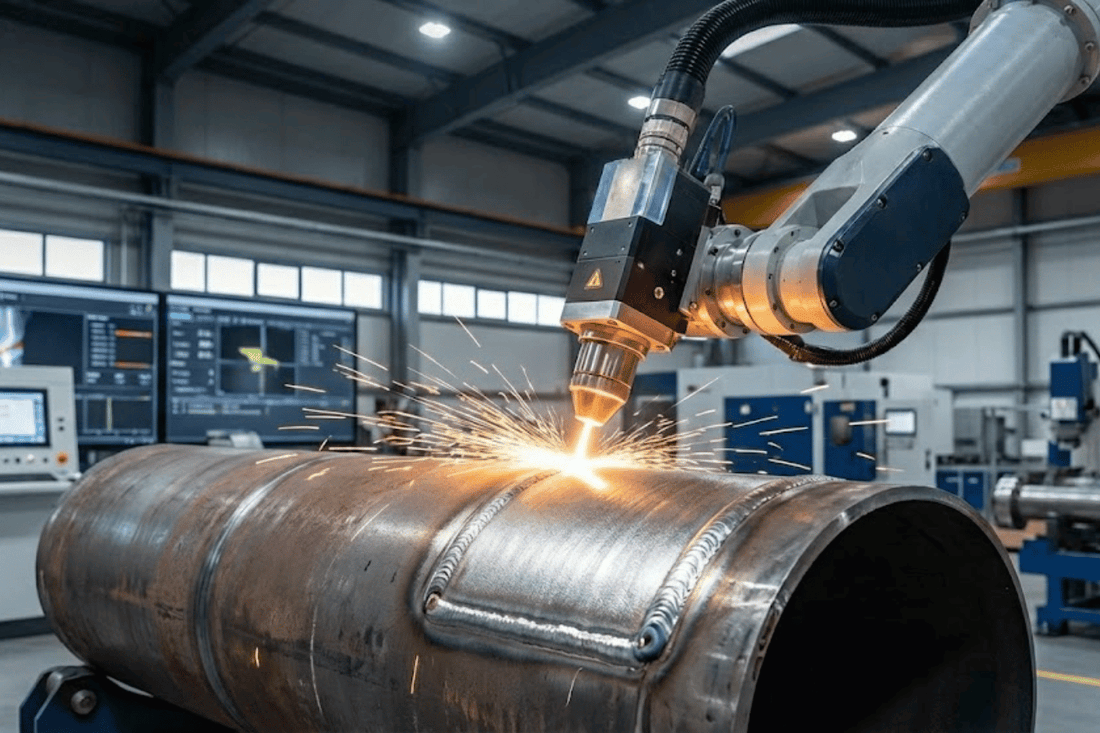

- 6-Axis Robotic Arms: These allow for the repair of complex pipe geometries, including elbows, T-junctions, and internal bores that were previously inaccessible.
3) Advanced Material Tailoring
Repairs are no longer limited to standard steel. We now use functionally graded materials (FGMs).
- Nickel and Cobalt-Based Alloys: Superior for high-temperature and highly corrosive environments.
- Carbide Blends: Essential for pipes subjected to extreme abrasive wear in mining and slurry transport.
Laser Cladding vs. Traditional Welding
For engineers deciding between a standard weld overlay and laser cladding, the choice often comes down to the Total Cost of Ownership (TCO).
| Feature | Traditional Weld Overlay | Laser Cladding (Modern) |
|---|---|---|
| Dilution Rate | 10% – 30% (High) | < 5% (Very Low) |
| Heat Affected Zone | Large (Risk of distortion) | Minimal (Preserves substrate) |
| Bond Strength | Mechanical / Metallurgical | Superior Metallurgical |
| Precision | Medium | Ultra-High |
| Post-Processing | Significant grinding required | Near-Net Shape (Minimal finishing) |
Major Benefits for Industrial Pipe Maintenance
Maximum Corrosion & Wear Resistance
By applying a thin layer of high-performance alloy, laser cladding effectively "upcycles" a standard carbon steel pipe to have the surface properties of expensive exotic metals.
On-Site Repair Capabilities
Mobile laser cladding units now allow for In-Situ repair. Instead of dismantling kilometers of pipeline, technicians can bring the laser to the pipe, drastically reducing downtime and logistics costs.
Sustainability and Waste Reduction
Unlike traditional methods that produce significant scrap and use hazardous materials (like Chromium-6), laser cladding is an eco-friendly process. It uses exactly the amount of powder needed, aligning with 2025 environmental regulations.
Common Applications for Laser Cladding in 2025
- Oil & Gas: Restoring drill pipes and valves exposed to sour gas and saltwater.
- Mining: Protecting slurry pipelines from internal erosion.
- Power Generation: Repairing steam turbine pipes and heat exchangers.
- Chemical Processing: Lining pipes that transport aggressive acids.
Conclusion
The advances in laser cladding for pipe repair represent a shift from "temporary fixes" to permanent enhancements.
By adopting these high-precision, automated, and material-efficient techniques, industries can ensure their infrastructure survives the harshest conditions of the modern era.
Frequently Asked Questions (FAQs)
1. Is laser cladding more expensive than welding?
While the initial setup or service cost is higher, the ROI is superior. Laser-clad pipes typically last 3x to 5x longer than those repaired with traditional welding, and the lack of post-process machining further reduces costs.
2. Can laser cladding be used on internal pipe surfaces?
Yes. Modern internal diameter (ID) cladding heads can reach deep inside pipes to restore bores and internal linings with high precision.
3. What materials can be clad?
Laser cladding is compatible with carbon steel, stainless steel, nickel alloys, titanium, and even some dissimilar metal combinations.
