What’s the Difference Between H-Beam and I-Beam?

Choosing the right structural steel beam is crucial for the safety, efficiency, and cost-effectiveness of any construction or engineering project.

Two of the most common types are H-beams and I-beams. While they may look similar at first glance, their differences in shape, strength, and application can have a significant impact on your project’s outcome.

What is an H-Beam?

H-beams (also known as wide flange beams or W-beams) are structural steel members with a cross-section that resembles the letter H.

They are characterized by:

• Wide, parallel flanges: Both the top and bottom flanges are broad and typically equal in thickness and width.
• Thick, uniform web: The central vertical section (web) is thick, providing excellent shear resistance.
• Symmetrical design: Ensures even stress distribution and high resistance to bending and buckling.

Key Technical Features

Attribute	Typical Value/Description
Cross-section shape	Wide, parallel flanges ("H" shape)
Flange width	100–400 mm (varies by standard)
Web/flange thickness	5–40 mm
Material grades	ASTM A992, A572, A36
Yield strength	258–550 MPa
Applications	High-rise buildings, bridges, heavy industry

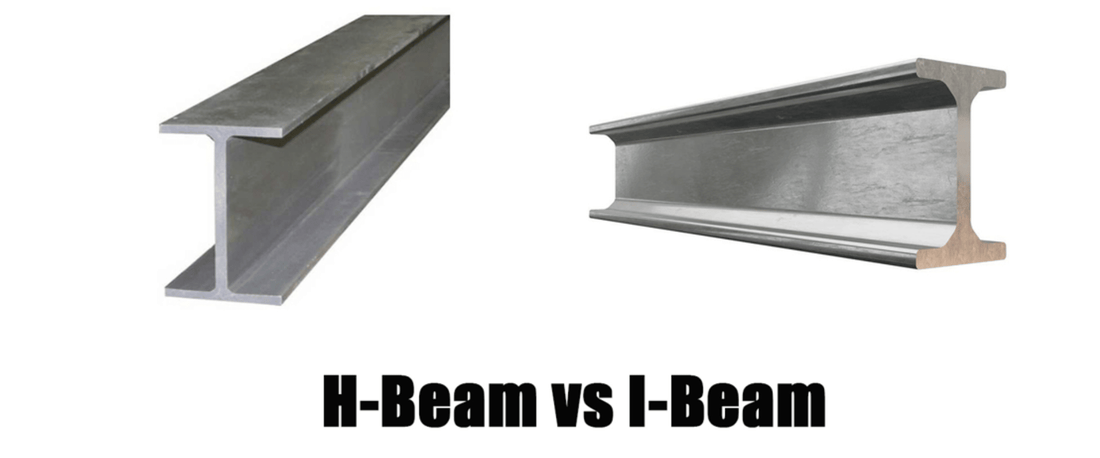

 Comparison: H-Beam vs I-Beam

Design and Structural Differences

H-beams (also called wide-flange or W-beams) and I-beams (often called universal beams or UB) share an “I-shaped” cross section but differ in proportions:

• Flange shape: An H-beam’s flanges are flat and parallel (rectangular profile), whereas an I-beam’s flanges are usually tapered (thicker near the web, thinner at the edges). The taper in an I-beam helps resist bending in a weight-efficient way, while H-beam flanges provide uniform thickness for heavy loads.
• Flange width: H-beams generally have wider flanges (often about as wide as the beam’s depth). In contrast, I-beams have narrower flanges (the width is usually less than the depth). Wider flanges on H-beams distribute loads over a larger area.
• Web thickness: The web of an H-beam is typically thicker than that of an I-beam of similar depth. The thick web on an H-beam adds rigidity and shear capacity. I-beams have thinner webs, which makes them lighter but somewhat less stiff laterally.
• Cross-section appearance: An H-beam cross-section looks like a bold “H” with heavy legs (flanges) and a stout center, whereas an I-beam cross-section looks like a capital I with a tall, narrow profile.

Load-Bearing and Strength

The geometry differences translate into distinct strength and load characteristics:

1) Bending resistance

H-beams generally have a higher moment of inertia (due to wider, thicker flanges), giving them superior bending stiffness.

This means for heavy loads or very long spans, H-beams can resist bending better than I-beams of the same depth. In other words, H-beams carry more load with less deflection.

2) Strength-to-weight

I-beams were originally designed (in some designs called “S-shapes”) with tapered flanges to optimize strength for a given weight. An I-beam can have a good strength-to-weight ratio for vertical loads because material is concentrated where bending stresses are highest (near the web).

In contrast, H-beams use more steel but yield higher absolute strength. In practical terms, an H-beam of a given weight can support more load than an I-beam of the same weight.

3) Shear and lateral loads

The thick web and wide flanges of an H-beam also make it strong in shear and give it higher lateral rigidity. H-beams resist torsion and lateral buckling better than narrow I-beams.

For loads that push sideways or twist a beam (from wind or seismic forces, for example), H-beams perform better.

4) Load span

Because of their strength, H-beams are preferred for long spans. Typical ranges suggest H-beams can span up to 300 feet or more in bridges or large halls, whereas I-beams are better suited to medium spans (often under ~100 feet).

Builders often use H-beams for large platforms, mezzanines, industrial floors, bridges and high-rise frames, where loads are heavy or spans long. I-beams commonly appear in building frames, floor joists, roof supports and smaller bridge girders.

5) Uniform loads vs point loads

Both beams carry uniform loads well, but if there are high point loads on the flanges (like concentrated wheels or racks), the taper of an I-beam flange can distribute stress differently than the flat flange of an H-beam.

In many designs, engineers choose I-beams for simple vertical loading and H-beams when multi-directional loads are expected.

Common Applications

Both H-beams and I-beams are versatile, but typical uses differ by their strengths:

H-Beam (Wide Flange) Uses:

• Heavy construction: H-beams support major structural elements in large buildings, factories, bridges, warehouses, and stadiums. They often serve as columns or primary girders.
• Long spans: Floor girders, roof supports and mezzanines use H-beams where long spans with minimal deflection are critical.
• Load-bearing columns: Because of their stability, H-beams are chosen for tall columns and as deep foundations (H-piles) in heavy structures.
• Industrial platforms: High-capacity shelving, crane runways, and platforms often use H-beams.
• Infrastructure: Large highway or railway bridges frequently use wide-flange beams in their superstructure.

I-Beam (Standard I/Universal Beam) Uses:

• Building frames: Common in residential or commercial steel framing where spans are moderate (floors, roofs, and walls of buildings).
• Floor joists and rafters: I-beams support concrete floors, decks, and light roofing systems.
• Bridges (light): Small to medium bridge spans, pedestrian overpasses, and smaller viaducts.
• Trusses and cranes: Components that need a high strength-to-weight ratio (such as crane boom segments or certain truss elements) may use tapered I-sections.
• Vehicles and trailers: As structural framing in heavy trucks, trailers, and cranes (where weight optimization is important).

Conclusion

Choosing between an H-beam and an I-beam depends on your project’s structural needs. H-beams, with their wide flanges and thick webs, are ideal for heavy loads, long spans, and industrial projects that require maximum strength and stability.

I-beams, on the other hand, offer excellent strength-to-weight efficiency and are better suited for medium spans and lighter structures like residential or commercial frames.

In short, the difference between H-beam and I-beam lies in their geometry and performance: H-beams provide higher load capacity and easier connections, while I-beams offer lighter weight and cost efficiency.

Understanding these differences ensures engineers and builders choose the right beam type for structural safety, performance, and budget optimization.

FAQs

1. Which beam is stronger, H-beam or I-beam?

H-beams are generally stronger than I-beams because of their wider flanges and thicker web, which distribute loads more evenly. They can support heavier weights and longer spans, making them ideal for large-scale construction projects such as bridges and industrial frameworks.

2. Why are H-beams preferred for heavy construction?

H-beams have a higher moment of inertia, offering greater bending resistance and stability. Their parallel, wide flanges make them suitable for columns, deep foundations, and high-rise structures, where load distribution and stiffness are critical.

3. Are H-beams more expensive than I-beams?

Per linear foot, H-beams cost more because they use more steel. However, they often provide better strength per unit, reducing the total number of beams needed in a project. For light or moderate loads, I-beams are more cost-effective, but for heavy-duty applications, H-beams offer greater long-term value.
